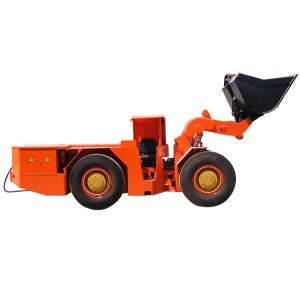

Underground LHD Diesel Scooptram Electric Loader LHD Made In China

Name: Underground LHD Diesel Scooptram Electric Loader LHD Made In China
Brand: Loader LHD
Price: 1000 USD

Ask Latest Price

Place of Origin :China

Brand Name :Loader LHD

Certification :CE

Model Number :Loader LHD

Type :Mini Loader

Moving Type :Wheel Loader

Dimension(Long * Breadth * High) :6090*1300*2000mm

Rated Load :7200KG

MOQ :1 set

Price :USD1000

Packaging Details :in wooden box

Delivery Time :within 7 working days after payment

Payment Terms :T/T,Western Union

Supply Ability :100 sets per month

Contact Now

Add to Cart

View Product Description

Underground LHD Diesel Scooptram Electric Loader LHD Made In China

Features:

1.Underground Diesel scooptram (underground loader) adopts Germany Deutz F6L912 Engine, driving system adopts American DANA Torque converter and gearbox, which is of easy operation and smooth running.

2.The braking system adopts hydraulic double pipe working system, and equipped with multi-disk wet braker, self-developed anti-skid differential mechanism of NO-SPIN, performs rather well even in bad conditions like harsh, high water saturation environments and muddy tunnel.

3.The main components of the hydraulic system adopts well-known manufacturers ' products both at home and abroad, manual operating diverter valve control the steering. Using pilot valve equipped with ergonomics handle to control the bucket arm lifting and bucket tilting.

4.Elaborate designed and manufactured electric scooptram has beautiful shape and high work efficiency. Mainly used for mine, loading and transporting the loose material which is left after bursting. It can also be used for tunnel engineering such as underground railway, highway and water conservancy, especially suitable for workingplane of poor work conditions , narrow working platform, low and muddy working face.

Parameters:

Model	0.75D	1D
Engine	DEUTZ F4L912W(Germany)	DEUTZ BF4L2011(Germany)
Heaped Bucket Capacity	0.75m³	1m³
Max.Traction	41KN	56KN
Running Speed	0-8Km/h	0-8Km/h
Max.Discharge Height	900mm	1085mm
Max.Rotation Angle	±36°	±36°
Rated Power	43KW	55.1KW
Weight(included hydraulic oil)	6.5T	7T
Payload Capacity	1500KGS	2000KGS
Max.Shovel Force	39KN	48KN
Gradeability	16°	16°
Min.Turning Radius	2350mm	2350mm
Min.Ground Clearance	195mm	195mm
Max.Bucket Height	3600mm	3600mm
Dimensions(LxWxH)	5800x1250x1900mm	6250x1300x1950mm
